# Create an API Tool

{% hint style="info" %}
You can use MaiAgent's [Tool Builder AI Assistant](https://chat.maiagent.ai/web-chats/27934296-105a-4f3f-80f0-7e9dcdb638d3) to help you create API tools
{% endhint %}

API tools are used to integrate external services and automate operational workflows.

## **What Is an API?**

**API (Application Programming Interface)** is a bridge for communication between different software systems. Simply put, it's like a **"waiter" in the software world**, helping different programs exchange information and execute functions.

Imagine you're dining at a restaurant:

* **You**: The customer who needs food (the application)
* **Kitchen**: The place that prepares food (the service provider system)
* **Waiter**: The person who relays messages between you and the kitchen (**API**)

You don't need to go into the kitchen yourself — just tell the waiter what you want. The waiter conveys your request to the kitchen, then brings the finished meal to you.

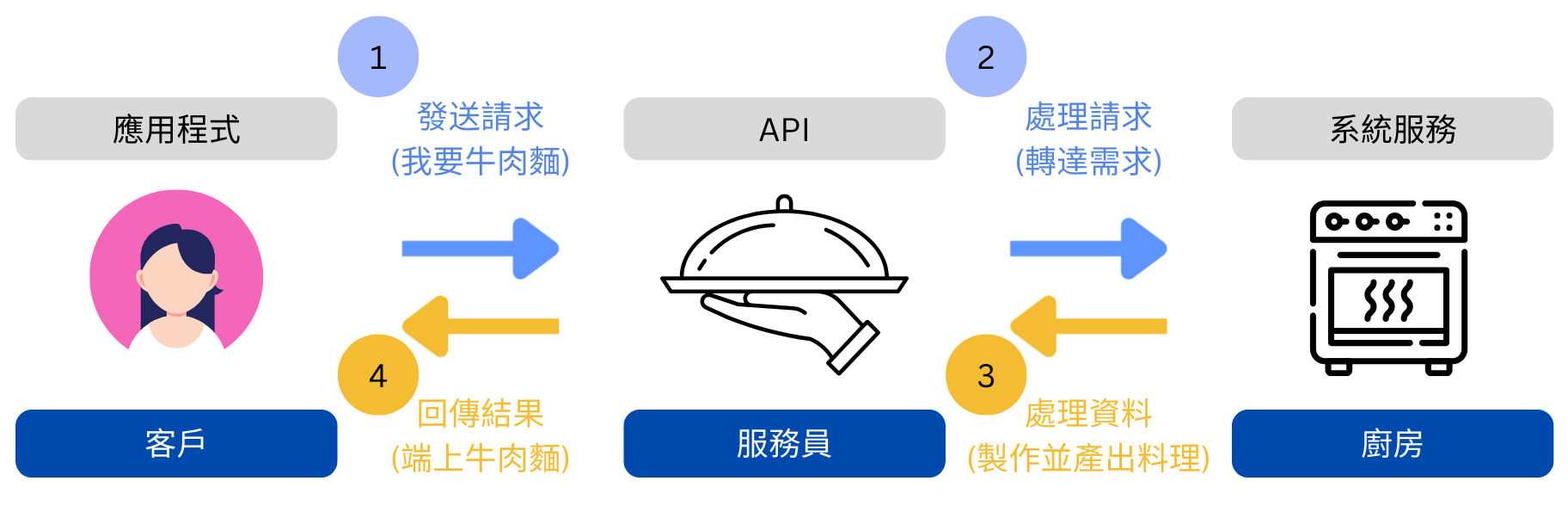

<figure><img src="/files/do5ctXNF4znRmsIgDz4m" alt=""><figcaption><p>API workflow diagram</p></figcaption></figure>

API tools can help you automate standardized workflows, set specific response formats, and retrieve information from your systems such as:

**E-Commerce Customer Service Automation**

```
Customer asks about order ➡️ API queries order status ➡️ Automatically replies with delivery progress
```

**Marketing Campaign Management**

```
New product listed ➡️ Automatically updates website ➡️ Sends EDM ➡️ Promotes on social media
```

**Online Course Platform:**

```
Student asks about course progress ➡️ API queries learning records ➡️ Automatically replies with completion percentage and next class time
```

Through API tools, the AI assistant evolves from a simple chatbot into an intelligent assistant capable of executing actual business workflows, significantly improving work efficiency and automation.

## Quick API Tool Setup

### 1. Access the Tool Management Interface

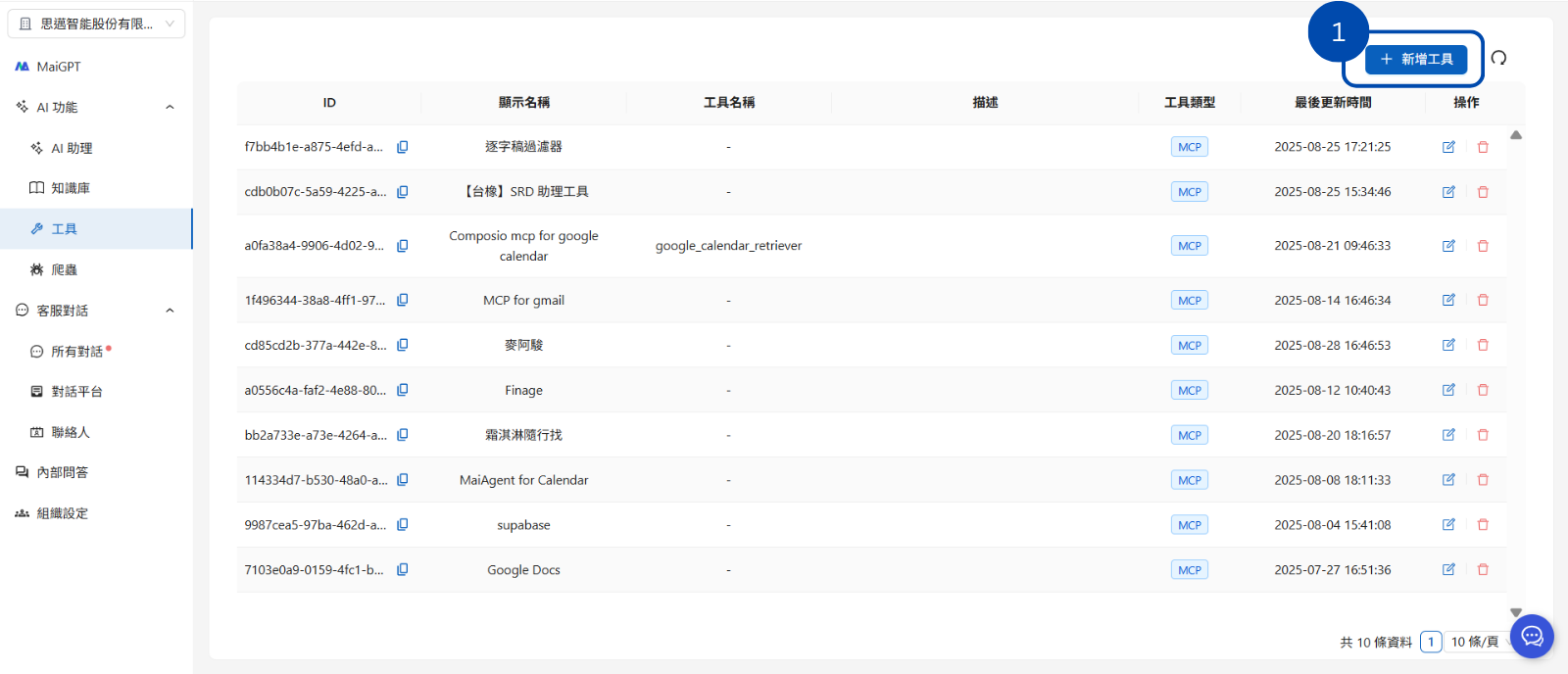

From the left navigation panel, go to the "<mark style="color:blue;">AI Features</mark>" section, then click "<mark style="color:blue;">🔧 Tools</mark>." On the tool list page, click the "<mark style="color:blue;">➕ Add Tool</mark>" button in the upper right corner.

<figure><img src="/files/BIDjwugoD6MaLatxrK8q" alt="Tool list page and add button"><figcaption><p>Click "➕ Add Tool" to get started</p></figcaption></figure>

### 2. Select the Tool Type

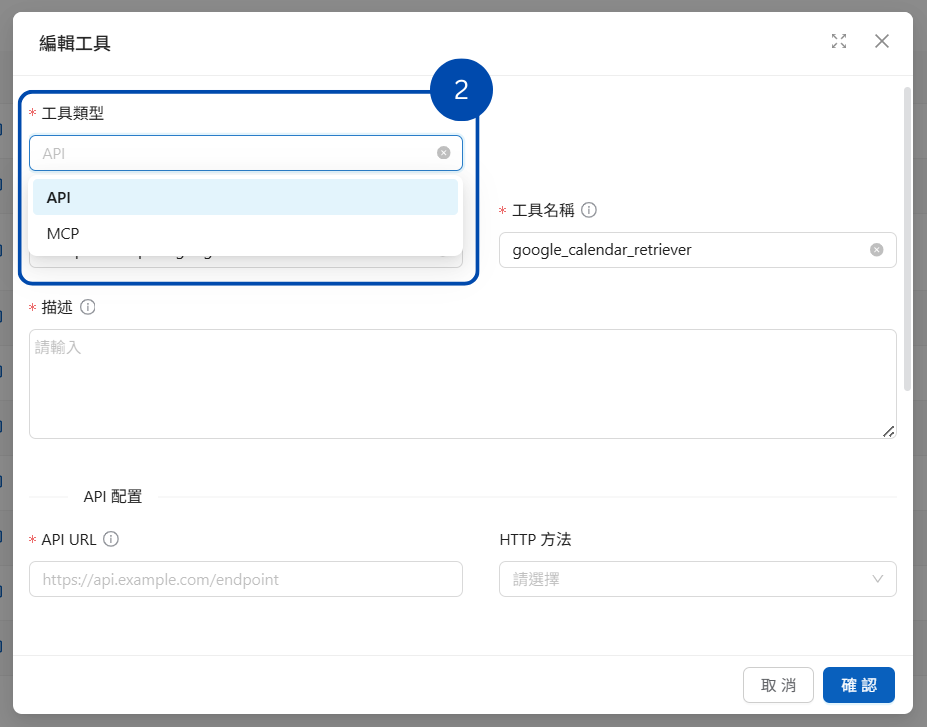

Select API as the tool type.

<figure><img src="/files/E3RxJjZ3amCsnXv2KmoG" alt=""><figcaption></figcaption></figure>

### 3. Set the Display Name

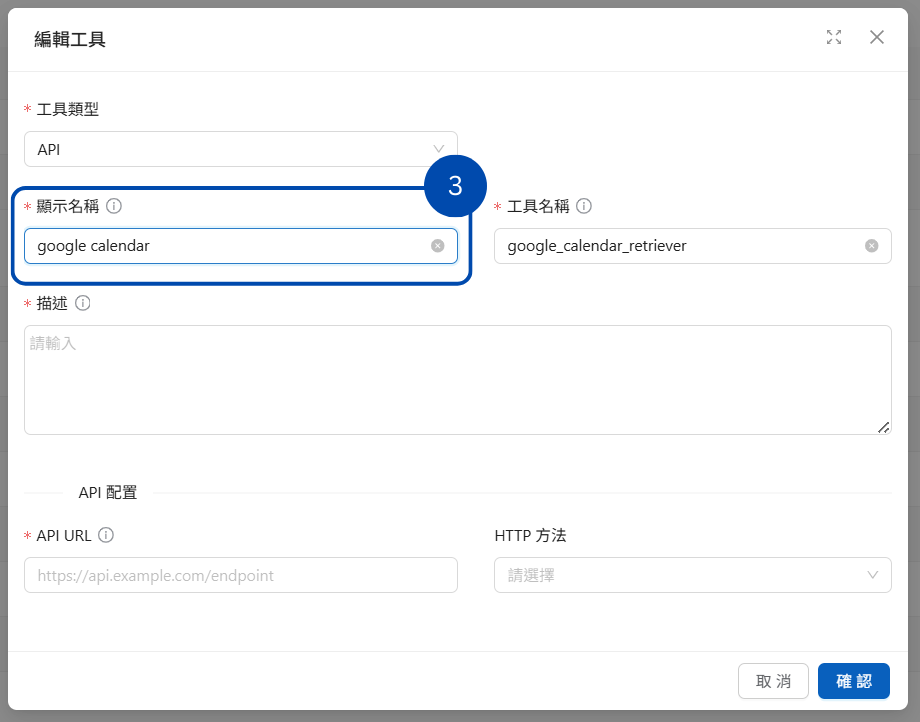

Set a clear display name for the tool. In this example, set it to <mark style="color:blue;">google calendar</mark>.

<figure><img src="/files/3tvZzGbfLcxRUEHO9hoy" alt=""><figcaption></figcaption></figure>

* **Purpose**: This name is displayed on the platform interface for all users to see.
* **Recommendation**: Choose a name that clearly describes the tool's main function for easy user understanding. There are no strict formatting requirements for this name.

### 4. Set the Tool Name

Next is the "<mark style="color:blue;">Tool Name</mark>" field.

* **Purpose**: This name is the unique identifier used by the AI assistant internally to call and identify this tool.
* **Naming Rules (Important)**:
  * Must be in English.
  * Can only contain:
    * Lowercase letters (a-z)
    * Uppercase letters (A-Z)
    * Numbers (0-9)
    * Underscores (`_`)
    * Hyphens (`-`)
  * **Examples**: `get_weather_forecast`, `database-query-tool`

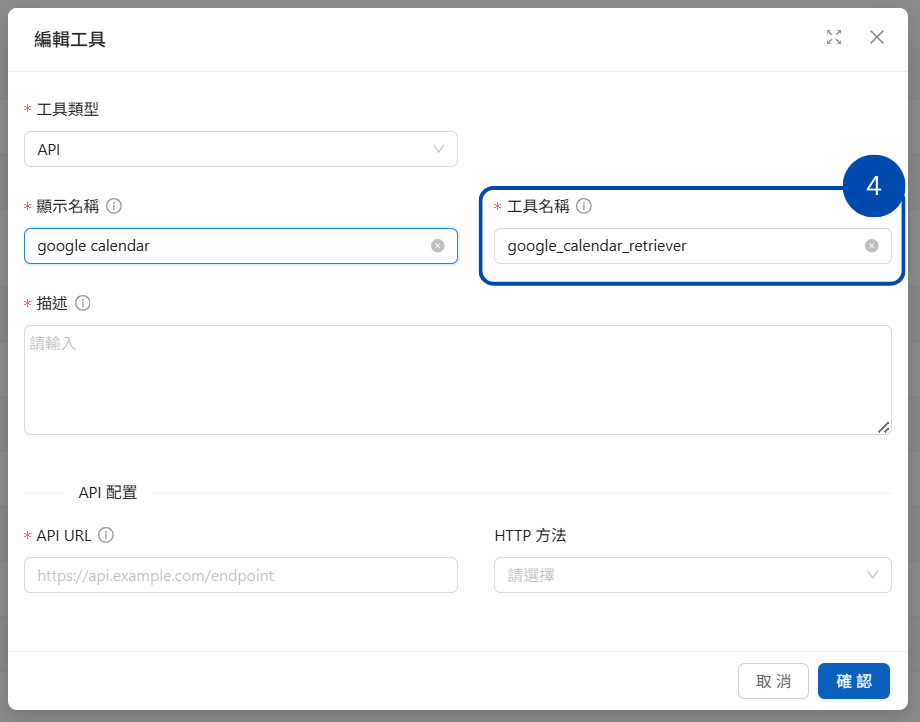

The example below is set to <mark style="color:blue;">google\_calendar\_retriever</mark>

<figure><img src="/files/ezB6KOeJa1XFG5jtyHv6" alt=""><figcaption><p>API tool name definition</p></figcaption></figure>

### 5. Write the Tool Description

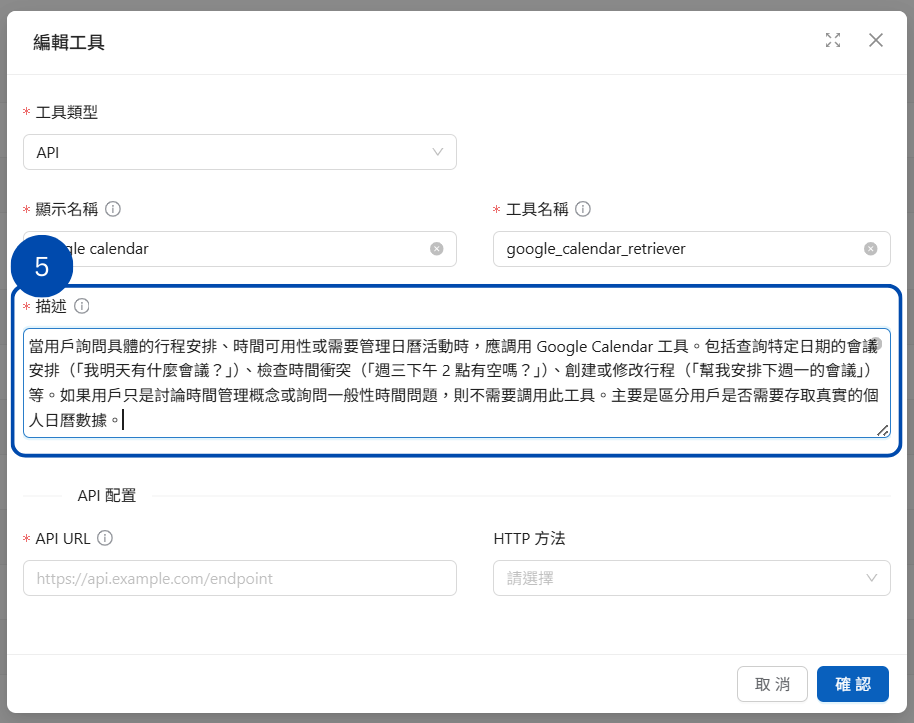

In the "<mark style="color:blue;">Tool Description</mark>" field, provide a clear and detailed tool description.

* **Importance**: A good description helps the AI assistant more accurately understand:
  * The tool's function and purpose.
  * When to use this tool.
  * How to interpret the tool's output results.
* **Suggested Content**: Describe what the tool does, what it takes as input, what it outputs, and any usage notes.

<figure><img src="/files/dKiiESRlFn5XgjWACoAR" alt=""><figcaption><p>Tool description</p></figcaption></figure>

### 6. Detailed API Configuration

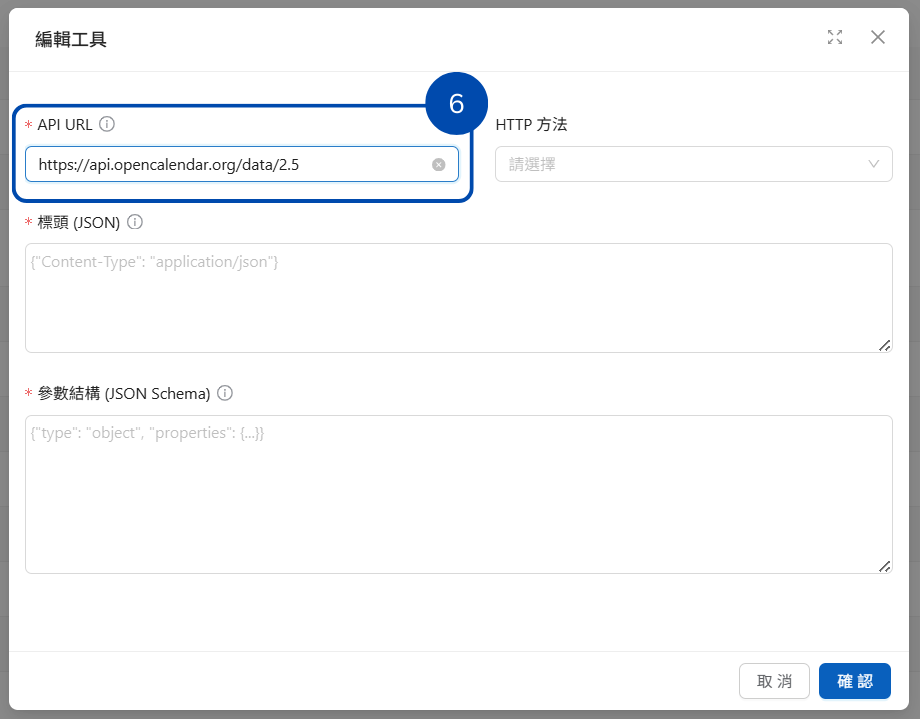

#### a. 🔗 API URL

* Enter the full URL of the target API endpoint (including `http://` or `https://`).
* **Example**: `https://api.opencalendar.org/data/2.5`

<figure><img src="/files/PypK3fZOctw2eEDBmo7c" alt=""><figcaption></figcaption></figure>

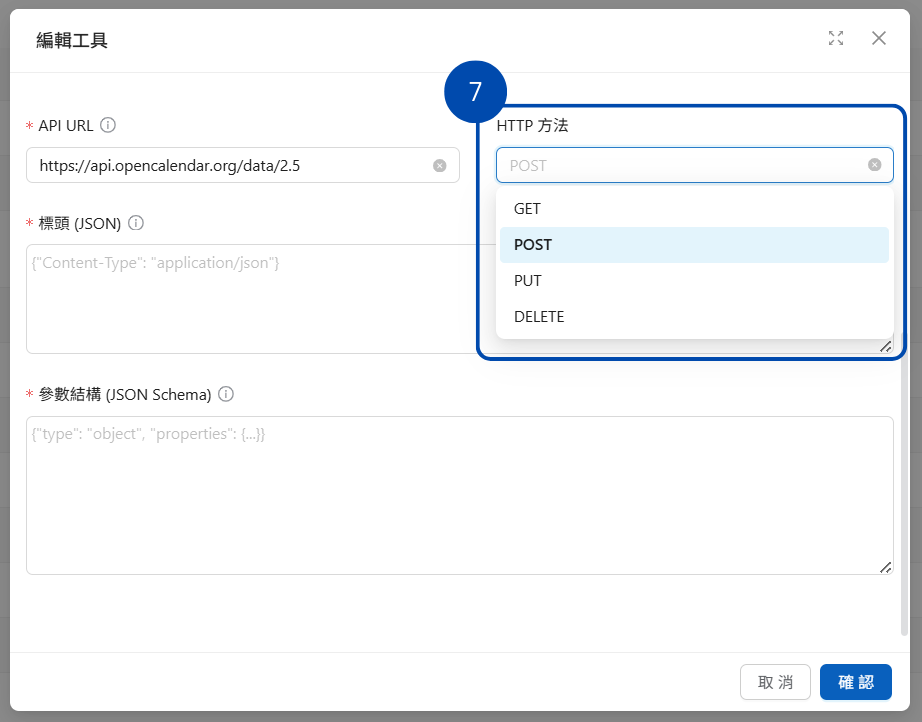

#### b. 📮 HTTP Method

* Select the HTTP verb required by the API service from the dropdown:
  * `GET`: Typically used for retrieving resources.
  * `POST`: Typically used for creating new resources or submitting data.
  * `PUT`: Typically used for fully replacing or updating resources.
  * `DELETE`: Typically used for deleting resources.

<figure><img src="/files/9bCQUzzqaFsbeBJgvGvx" alt=""><figcaption></figcaption></figure>

#### c. 📰 Headers

Headers are like the "<mark style="color:blue;">envelope</mark>" of a letter. Before seeing the actual data content, they tell the receiver some important information. **Without correct headers, API requests may fail authentication, or the receiver may not be able to parse the data correctly.**

**Common Uses**:

* Authentication (`Authorization`, `X-API-Key`)
* Specify content type (`Content-Type`)
* Specify accepted response format (`Accept`)

To add headers:

* Click "<mark style="color:blue;">➕ Add Header</mark>" to define HTTP headers sent with the request.
* **Format**: Must be a valid JSON object where keys are header names and values are header content (strings).
* **Example**:

  ```json
  {
    "Content-Type": "application/json; charset=utf-8",
    "Authorization": "Bearer {{SECRET_API_TOKEN}}",
    "Accept": "application/vnd.github.v3+json"
  }
  ```

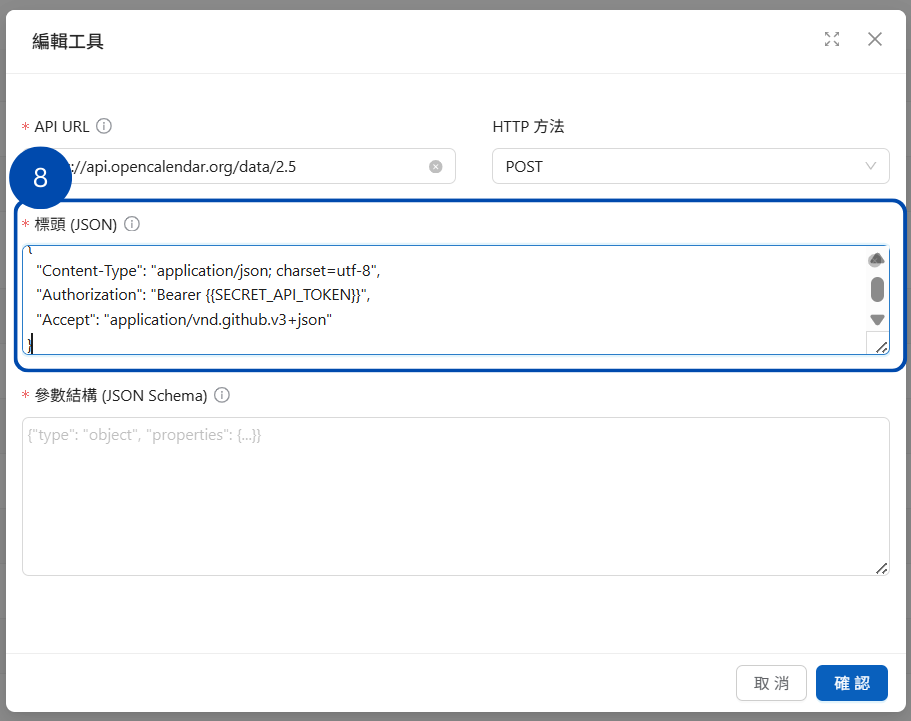

<figure><img src="/files/j2stKgNc2fYAlYvh3sbF" alt="API headers configuration screenshot"><figcaption><p>Configure required HTTP request headers</p></figcaption></figure>

#### d. 🧩 Parameters Schema

**The parameters schema is like an "order form"** — it tells the AI assistant what data it can request from the API and how to make the request.

* **Core Configuration**: Define which parameters the AI assistant can or must provide when calling this tool, as well as the format of those parameters.
* **Format**: Use standard **JSON Schema** format.
* **Key Elements**:
  * `type: "object"`: Indicates the parameters are an object.
  * `properties`: Defines the object for each parameter.
    * **Parameter name** (e.g., `"search"`): The corresponding object contains that parameter's details.
      * `type`: The parameter's data type (`string`, `integer`, `number`, `boolean`, `array`, `object`).
      * `description`: A description for the AI assistant explaining the parameter's meaning.
      * `default` (optional): The parameter's default value.
      * `enum` (optional): If the parameter value can only be one of specific options, list them here.
  * `required`: An array containing the names of all **required** parameters.
* **Example** (video search tool):

  ```json
  {
      "type": "object",
      "properties": {
          "limit": {
              "type": "integer",
              "minimum": 1,
              "description": "Maximum number of results to return"
          },
          "fields": {
              "type": "string",
              "description": "Comma-separated list of fields"
          },
          "search": {
              "type": "string",
              "description": "Search keyword"
          }
      },
      "required": ["search"]
  }
  ```

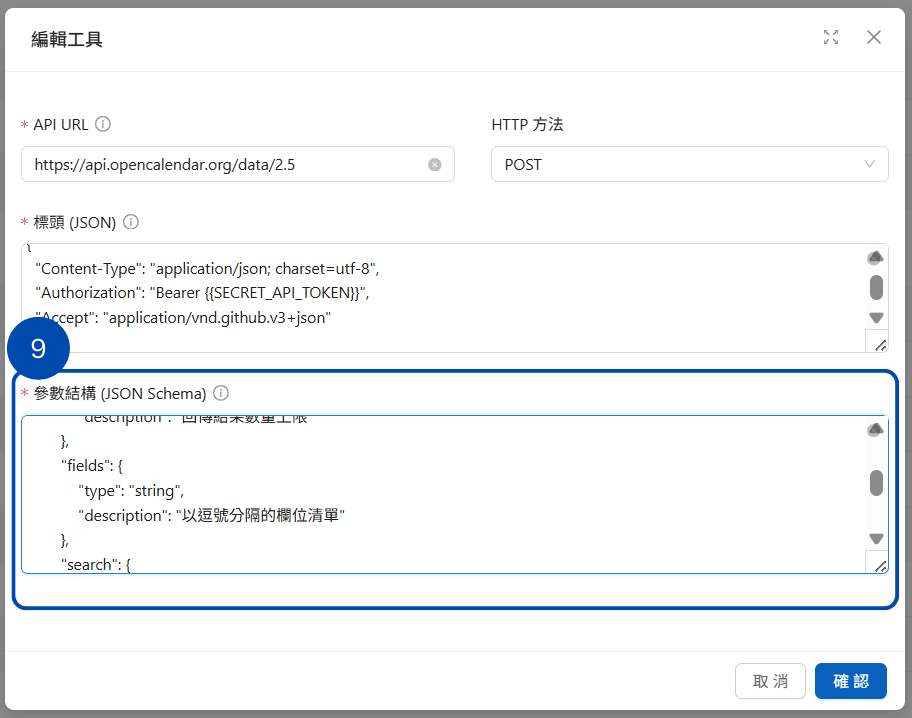

<figure><img src="/files/veahQQ54bUNf4hk0aaUT" alt="API parameters schema configuration screenshot"><figcaption><p>Use JSON Schema to precisely define API parameters</p></figcaption></figure>

### 7. 💾 Save the Tool

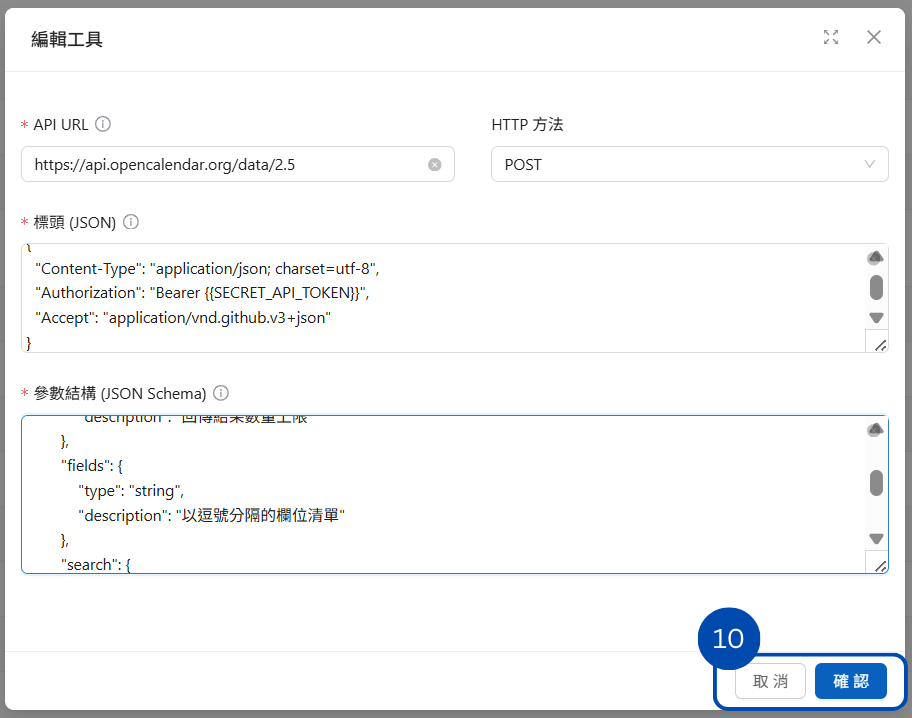

After confirming all settings are correct, scroll to the bottom of the page and click the "<mark style="color:blue;">Confirm</mark>" button. Your new tool is now created!

<figure><img src="/files/X4oGUQOizpvkBFnayoqi" alt=""><figcaption></figcaption></figure>

## ⚠️ Important Reminders

**Connection Testing**

* After creating the tool, test the API to ensure it works properly
* Use testing tools to verify functionality, such as:
  * POSTMAN
  * Your company's own API testing platform

**Permission Management**

* Regularly check tool usage status and permission access settings


---
