Function Calling

What is Function Calling?

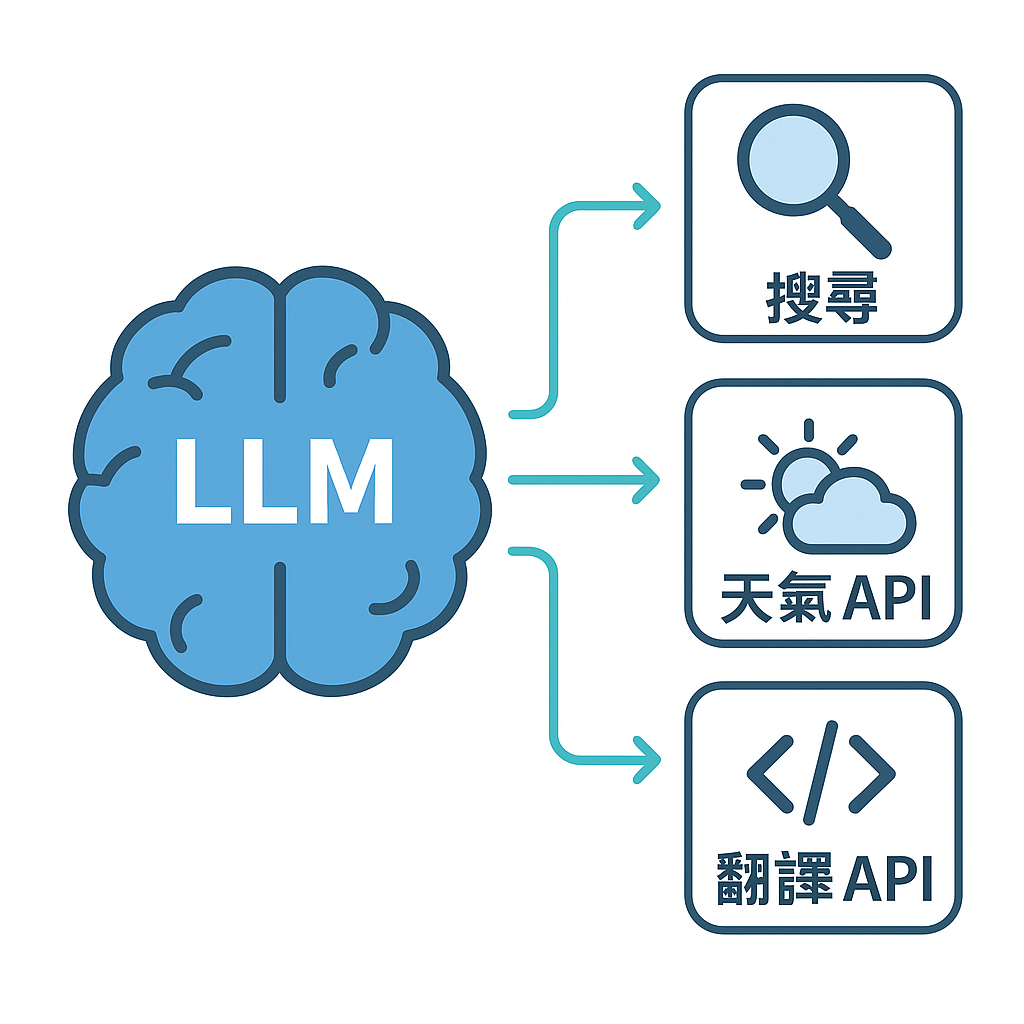

Function Calling refers to the capability of a large language model (LLM) to understand when it needs to invoke external code or APIs (which we call "tools" or "functions") during interactions with users or while handling tasks, and to accurately output the name of the function to call and its parameters in a structured format (usually JSON).

Importantly, the LLM itself does not directly execute these functions; it only "decides" which function is needed and with what parameters to call it. The actual function execution is performed by the calling application, which then returns the execution result to the LLM so the model can use that information to generate more accurate, relevant responses or continue to complete more complex tasks.

RAG process

How Function Calling works

The Function Calling workflow typically includes the following key steps, forming a dynamic interactive loop:

1. Intent recognition and structured instruction generation

• User makes a request in natural language

• LLM parses the request and understands the user's intent

• Determines whether an external function needs to be called

• Generates a structured output (JSON format) containing the function name and parameters

• The model itself does not execute any functions

2. External function execution

• The application receives the structured instruction generated by the LLM

• Executes the corresponding external function based on the function name and parameters

• May involve:

  • Database queries

  • Third-party service calls

  • Computational operations

3. Returning and integrating results

• External function execution completes

• Results are returned to the application

• The application passes the results to the LLM

4. Generating the final response or further actions

• LLM receives the function execution results

• Integrates the information into the context

• Generates the final natural language answer

• Or decides whether to call the next function

This closed-loop process transforms the LLM from a simple text generator into an intelligent agent capable of interacting with the external world, obtaining real-time information, and performing actual operations.

Core uses and value of Function Calling

Function Calling brings revolutionary changes to LLM applications, making them more practical and powerful:

1. Retrieval and integration of real-time and dynamic data

Applications

• Automatically call external APIs to obtain the latest data

  • Weather queries

  • Stock market

  • Real-time news

  • Product inventory

• Avoid relying on the knowledge cutoff of training data

Value

• Ensure timeliness and accuracy of information

• Increase user trust

2. Automation of complex business processes

Applications

• Applicable scenarios

  • Customer service

  • E-commerce

  • Enterprise internal systems

• Automated operations

  • Order inquiries

  • Product recommendations

  • Appointment scheduling

  • Question answering

  • Return requests

  • Create service tickets

Value

• Improve work efficiency

• Reduce labor costs

• Provide 24/7 real-time service

• Improve user experience

3. Intelligent agents and coordination for multi-step tasks

Applications

• Examples of handling complex tasks:

  • Travel planning

  • Flight booking

  • Hotel recommendations

  • Itinerary scheduling

• Intelligently orchestrate multiple functions

  • Flight API

  • Hotel API

  • Map services

  • Calendar API

Value

• Achieve end-to-end task automation

• Handle complex user requirements

4. Giving LLMs structured operation capabilities

Applications

• Convert natural language into structured operations

  • Text-to-SQL queries

Value

• Enable non-technical users to interact with complex systems via natural language

Common application scenarios for Function Calling

Categories	Example application scenarios	Core features and advantages
Information retrieval and question answering	AI assistant queries company latest policies, legal provisions, product specifications in real time	Ensure the timeliness, accuracy, and reliability of answer sources
Automated workflows	E-commerce customer service self-service order status lookup, initiate refunds, automatically create after-sales service tickets	Trigger backend system standardized processes through a single Q&A, improving efficiency
Data analysis and visualization	Call computational and statistical libraries and chart-generation APIs based on user instructions	Enable natural language-driven data computation, analysis, and visual presentation of results
External system integration	LLM controls smart home devices, operates enterprise internal software, sends emails/messages	Extend the LLM's understanding capability to real system operations and hardware control
Content generation assistance	Call SEO tools to optimize articles, check grammar, generate images/code snippets	Combine external tools to strengthen the LLM's content generation quality in specific domains

Unique advantages of MaiAgent Function Calling

Choosing the MaiAgent platform to implement and manage Function Calling features will bring the following key advantages to your application:

1. Powerful and flexible tool management: MaiAgent provides an intuitive and easy-to-use interface and APIs that let you easily register, configure, and manage your external functions (tools). You can define each tool's name, description, input parameters (including type, whether required, description, etc.) and expected output format in detail.

2. Reliable structured parameter generation: MaiAgent ensures the LLM can reliably generate parameters that conform to JSON Schema or other specified formats based on tool definitions, reducing function execution failures caused by format errors.

3. Seamless development and integration experience: MaiAgent offers an intuitive and user-friendly interface that allows users to connect without writing code and quickly set up and configure required function-calling tools, improving efficiency

Summary

Function Calling technology elevates LLMs from a passive "knowledge Q&A machine" to an active "task executor" and "intelligent agent," perfectly combining the LLM's powerful natural language understanding with the external world's concrete execution capabilities through standardized interfaces, opening limitless opportunities for developers to innovate applications.

With advantages in tool management, development integration, and platform stability, MaiAgent provides an ideal Function Calling solution to help you easily build smarter, more powerful AI Agent applications that solve real problems.
