# Parser 解析工具

知識庫的文件解析器與語音轉文字解析器：各解析器支援的格式、處理圖片與掃描檔的方式、能否離線運作、自動偵測的選擇規則與計費方式。

## 什麼是 Parser？ <a href="#what-is-parser" id="what-is-parser"></a>

Parser（解析器）把上傳到知識庫的原始檔案轉成文字，是向量化與檢索的前一步。解析品質直接決定後面找不找得到內容：表格是否保留結構、圖片與掃描頁的文字是否被讀出來，都在這一步決定。

<figure><img src="https://527168072-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F38pkhhqHl1oA6yyE9R2n%2Fuploads%2Fgit-blob-0ce05108866ecded0daa5a9fb3cd8b9137ffef26%2F2%20(1).png?alt=media" alt=""><figcaption><p>RAG 流程</p></figcaption></figure>

上傳時可以為每個檔案指定解析器，後台操作見使用者手冊的 [如何建立知識庫：基本設置](https://docs.maiagent.ai/build/knowledge-base/km-basic-settings)。各解析器可用的檔案類型，也可以呼叫 `GET /api/v1/allowed-file-specs/` 取得。

***

## 文件解析器 <a href="#document-parsers" id="document-parsers"></a>

MaiAgent 雲端目前提供三種文件解析器：

| 項目        | MaiAgent Parser（預設）                                                                                                                                                            | MaiAgent Parser (Offline)                   | Vision Parser                                      |
| --------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ------------------------------------------- | -------------------------------------------------- |
| 處理方式      | 直接讀取檔案內的文字、表格與圖片                                                                                                                                                               | 以版面分析保留文件結構（標題、表格）                          | 由雲端多模態模型逐頁「看」文件並轉成 Markdown                        |
| 圖片與掃描頁    | 擷取內嵌圖片；沒有文字層的向量繪圖頁會做 OCR                                                                                                                                                       | 設定多模態模型後，PDF 會加做 OCR 與圖片描述                  | 以視覺理解讀出圖片、圖表與掃描頁的內容                                |
| 使用大型語言模型  | 否                                                                                                                                                                              | 只有設定多模態模型時                                  | 是                                                  |
| 離線（無網路）環境 | 可以                                                                                                                                                                             | 可以；圖片描述需在地端部署多模態模型                          | 不行，需連線到雲端模型                                        |
| 支援格式      | `.pdf` `.doc` `.docx` `.odt` `.xls` `.xlsx` `.csv` `.ods` `.ppt` `.pptx` `.odp` `.epub` `.txt` `.json` `.jsonl` `.md` `.eml` 與圖片檔 `.png` `.jpg` `.jpeg` `.gif` `.webp` `.tiff` | `.pdf` `.docx` `.pptx` `.md` `.html` `.htm` | `.pdf` `.doc` `.docx` `.odt` `.ppt` `.pptx` `.odp` |

* **圖片檔**（`.png`、`.jpg` 等）要放進知識庫，知識庫必須使用支援多模態的 Embedding 模型，見 [Embedding 模型](https://docs.maiagent.ai/tech/quickstart/embedding.md#before-you-choose)。
* MaiAgent Parser (Online) 目前由平台統一停用，無法選用。
* 地端部署可用的解析器依部署設定而定，請洽 MaiAgent 窗口。

#### 「自動偵測（預設）」與解析計費 <a href="#auto-detect-and-billing" id="auto-detect-and-billing"></a>

上傳 PDF、Word（.docx）、PowerPoint（.pptx）到知識庫時，上傳視窗每個檔案旁的解析器下拉選單預設是 <mark style="color:blue;">自動偵測（預設）</mark>，不是固定使用 MaiAgent Parser。系統會在上傳後讀取檔案結構再決定解析器：

* 只有文字、沒有明顯圖片內容的檔案 → 使用該檔案類型的預設解析器（一般為 MaiAgent Parser）
* 掃描檔（沒有文字層）、含圖片內容的檔案（例如工程圖面、掃描件）與 PowerPoint → 系統從支援 OCR 或視覺理解的解析器（MaiAgent Parser (Offline)、Vision Parser）中挑選；找不到合適的解析器時使用預設解析器

判斷依據是檔案結構（有沒有文字層、含圖片與含表格的頁數），不是圖片張數多寡；Word 檔只要內嵌圖片就視為含圖片內容。因此只有少量圖片的文件仍可能改用上述解析器，實際結果以知識庫文件列表 <mark style="color:blue;">解析器</mark> 欄顯示的解析器為準。

點數依**實際完成解析的那個解析器**計算。各解析器的計費單位、重新解析與換解析器的扣點規則，見使用者手冊 [用量計算：各解析器的計費單位](https://docs.maiagent.ai/others/usage#parser-billing-units)。對帳時，每筆解析費用在組織 Credits 的 <mark style="color:blue;">消耗記錄</mark> 中以下列描述記錄（匯出 CSV 的「描述」欄；也可以用 <mark style="color:blue;">搜尋</mark> 輸入檔名查詢）：

| 解析器                       | 消耗記錄的描述                                                |
| ------------------------- | ------------------------------------------------------ |
| MaiAgent Parser           | `Document parsing (maiagent): 檔名`                      |
| MaiAgent Parser (Offline) | `Document parsing (docling): 檔名`                       |
| Vision Parser             | `Vision parsing input: 檔名`、`Vision parsing output: 檔名` |

{% hint style="warning" %}
在文件列表更換解析器（含 <mark style="color:blue;">批量修改解析器</mark>）會立即重新解析，沒有確認視窗。要固定解析成本、避免自動改用其他解析器，請在上傳時直接選擇 MaiAgent Parser（或其他指定的解析器），不要使用 <mark style="color:blue;">自動偵測（預設）</mark>。
{% endhint %}

#### 圖片過大導致解析失敗 <a href="#oversized-images" id="oversized-images"></a>

文件內嵌的圖片有尺寸上限，超過時依解析器有兩種結果：

* **Vision Parser** 會略過單邊超過 8,000 px 或像素總數（寬 × 高）超過 4,000 萬的內嵌圖片，只以整頁影像辨識，不會讓整份文件失敗；被略過的圖片內容若是重點，請先把圖片縮小再重新上傳。
* **其他解析器**在解碼超大圖片時可能整份失敗，文件列表的 <mark style="color:blue;">失敗原因</mark> 會出現 `total decoded image size must be at most … pixels` 這類訊息，代表文件中有圖片的像素總數超過該解析器的解碼上限。處理方式：把來源文件中的圖片縮小或壓縮後重新上傳；掃描檔改用 Vision Parser；只需要文字時，先把文件另存為不含圖片的版本。

{% hint style="info" %}
上限以像素總數計，不是檔案大小：一張 8,000 × 8,000 的截圖（6,400 萬像素）即使壓成很小的 JPEG 也會超過。縮圖時把長邊控制在 4,000 px 以內最保險。
{% endhint %}

***

## 語音轉文字解析器 <a href="#speech-parsers" id="speech-parsers"></a>

音訊檔上傳到知識庫後，由語音轉文字解析器轉成逐字稿再建立索引。MaiAgent 雲端目前提供：

| 解析器（後台名稱）       | 服務                     | 語言設定                  | 自訂提示詞 | 可上傳影片檔 |
| --------------- | ---------------------- | --------------------- | ----- | ------ |
| Azure Speech    | Azure 語音服務             | 可指定，最多 4 種            | 否     | 否      |
| WhisperGroq     | Groq（Whisper large-v3） | 可指定 1 種，或自動偵測         | 是     | 是      |
| WhisperOpenAI   | OpenAI（Whisper）        | 可指定 1 種，或自動偵測         | 是     | 是      |
| Bronci (長問語音辨識) | Bronci                 | 台語、台灣華語、客語（四縣、海陸），擇 1 | 否     | 否      |

語音轉文字依音訊秒數計費，每次重新轉錄都會再計費，見使用者手冊 [用量計算：各解析器的計費單位](https://docs.maiagent.ai/others/usage#parser-billing-units)。消耗記錄的描述為 `Audio parsing (服務代碼): 檔名`，例如 `Audio parsing (azure): 檔名`。

地端部署的語音轉文字由部署包設定：新部署預設使用本機的 LocalAI 服務（模型為 Qwen3-ASR 或 Whisper，需要 GPU），既有站台可沿用 Whisper (Offline)。兩者都在地端執行，音訊不會送到雲端。

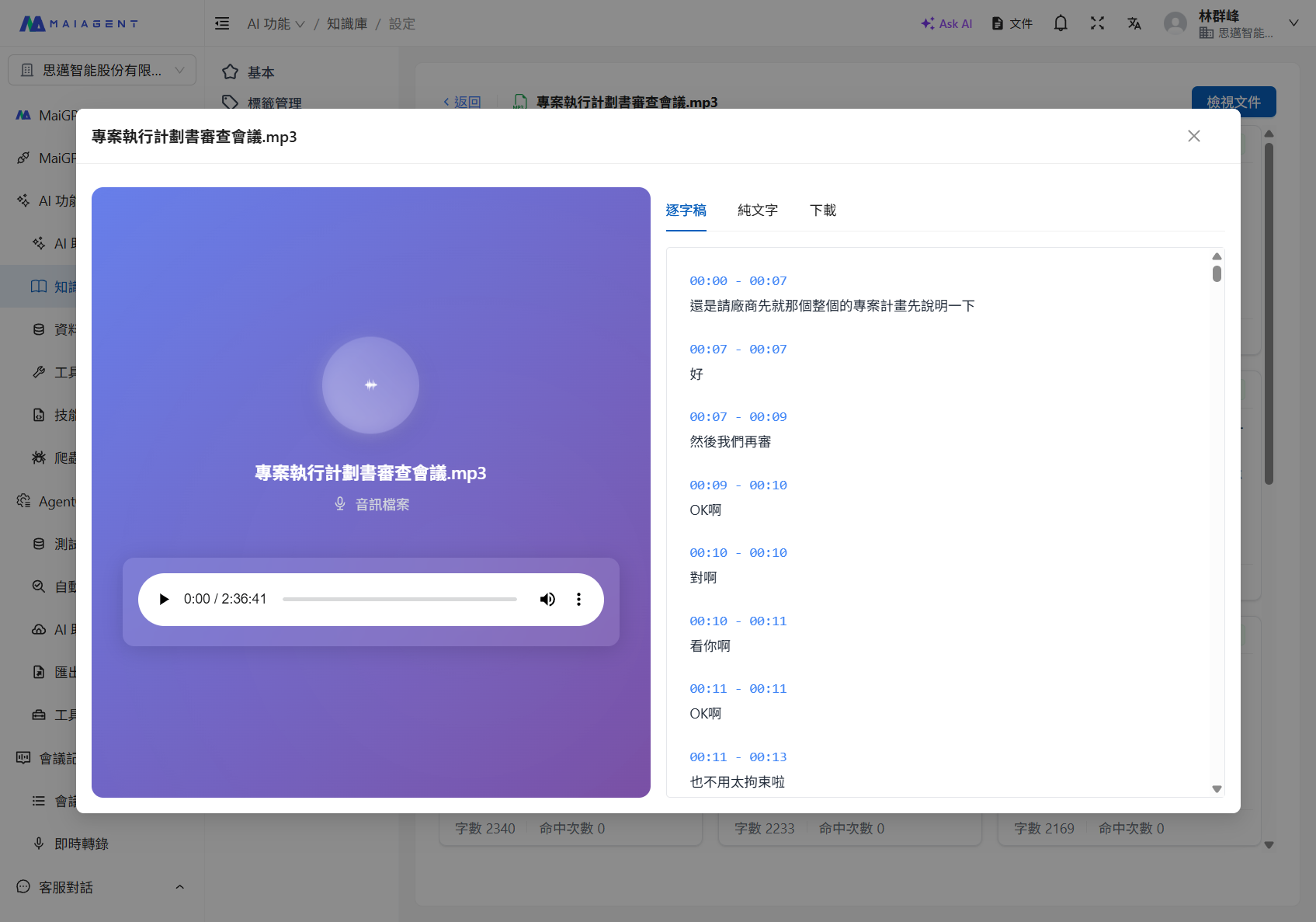

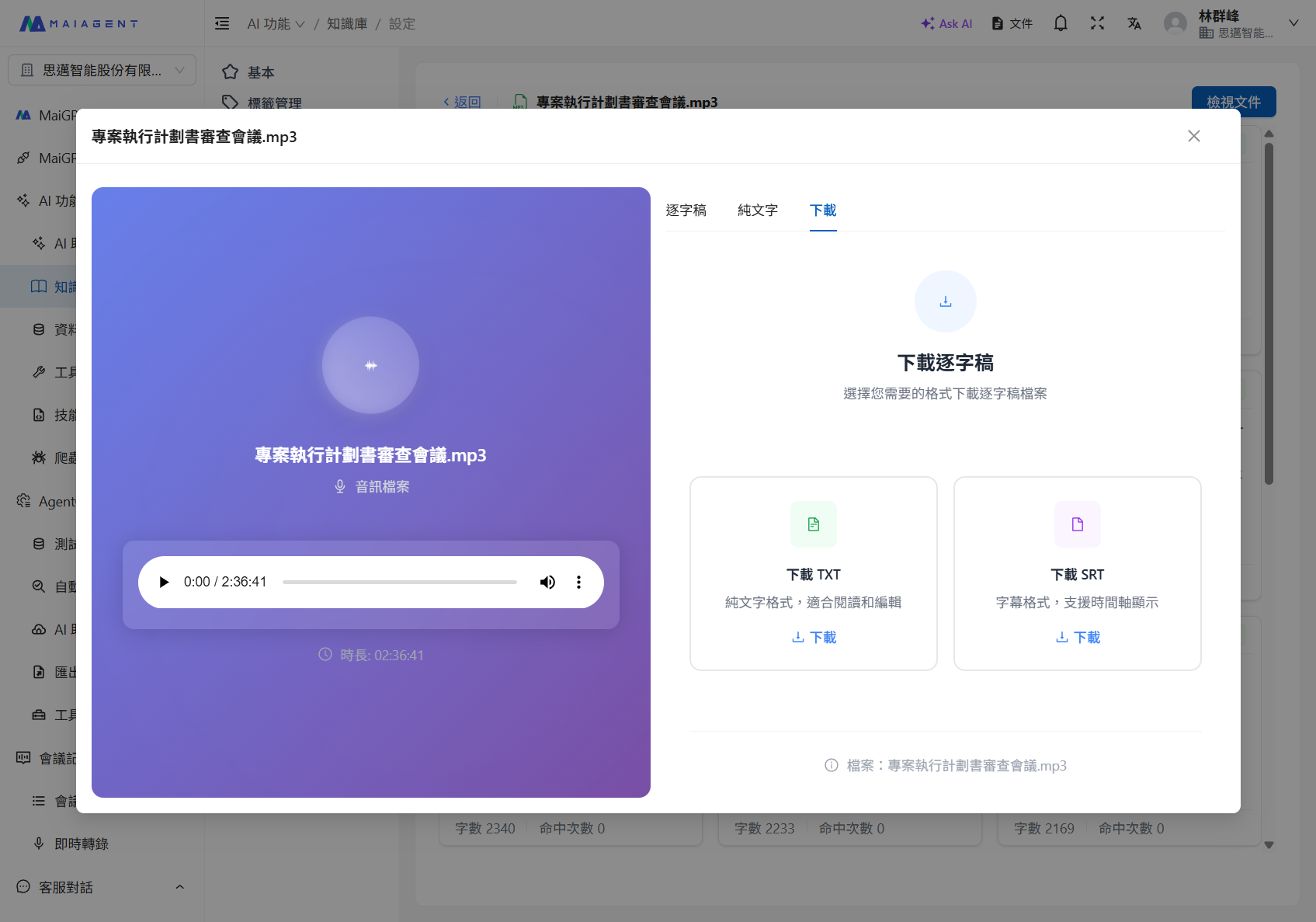

音訊檔解析完成後，可以在知識庫檢視逐字稿，並下載 TXT（純文字）或 SRT（字幕格式）：


---
