# MaiAgent MCP

Use MaiAgent MCP to let Claude, Cursor, and other external AI tools directly operate the MaiAgent platform — connection setup, authentication, and usage guide

## <mark style="color:blue;">1. What Is MaiAgent MCP?</mark> <a href="#what-is-maiagent-mcp" id="what-is-maiagent-mcp"></a>

MaiAgent MCP is the official remote [MCP (Model Context Protocol)](https://modelcontextprotocol.io/) service provided by MaiAgent. After adding it to AI tools that support MCP — such as Claude Code, Claude Desktop, or Cursor — you can operate the MaiAgent platform directly using natural language. For example:

* "Create a customer service AI Assistant using the Claude Sonnet model"
* "List all Knowledge Bases in my Organization and upload this FAQ to the product Knowledge Base"
* "Retrieve yesterday's Conversation records and summarize the most frequently asked questions"

| Item                 | Description                                                                                                                       |
| -------------------- | --------------------------------------------------------------------------------------------------------------------------------- |
| **Service Endpoint** | `https://mcp.maiagent.ai/mcp`                                                                                                     |
| **Transport**        | Streamable HTTP (remote connection, no local installation required)                                                               |
| **Authentication**   | MaiAgent API Key (HTTP Header)                                                                                                    |
| **Coverage**         | Full MaiAgent platform API: AI Assistants, Knowledge Bases, Conversations, tools, Organization management, and over 300 Endpoints |

### Available Tools <a href="#available-tools" id="available-tools"></a>

Once connected, your AI tool will have access to the following 6 tools. The AI automatically combines them (first searching for APIs, then checking specifications, and finally executing), so you don't need to remember any API details:

| Tool                  | Purpose                                                                                                          |
| --------------------- | ---------------------------------------------------------------------------------------------------------------- |
| `debug_auth`          | Check whether the authentication status is correct                                                               |
| `list_api_categories` | List all API categories                                                                                          |
| `search_apis`         | Search API Endpoints by category or keyword                                                                      |
| `get_api_details`     | Retrieve the full specification of a specific API (Parameters, Request body, Response format)                    |
| `call_api`            | Execute an actual API call                                                                                       |
| `refresh_schema`      | Force reload the API list (use when a newly released API cannot be found; normally auto-updates every 5 minutes) |

{% hint style="info" %}
**Don't mix up the direction**: This page explains how to connect MaiAgent to **external** AI tools. If you want to do the opposite — attach other MCP tools to an AI Assistant within MaiAgent — refer to [Create MCP Tools](/maiagent-user-guide/en/tools/mcp-setup.md).
{% endhint %}

***

## <mark style="color:blue;">2. Prerequisites</mark> <a href="#prerequisites" id="prerequisites"></a>

Before you begin, you only need to prepare one **API Key**.

{% hint style="warning" %}
An API Key is bound to the **Organization you are in when the Key is created**. All MCP operations will apply to that Organization. If you belong to multiple Organizations, switch to the target Organization using the top-left selector in the Admin Console before creating the Key. Each member can have only one active Key per Organization.
{% endhint %}

### Get an API Key <a href="#get-api-key" id="get-api-key"></a>

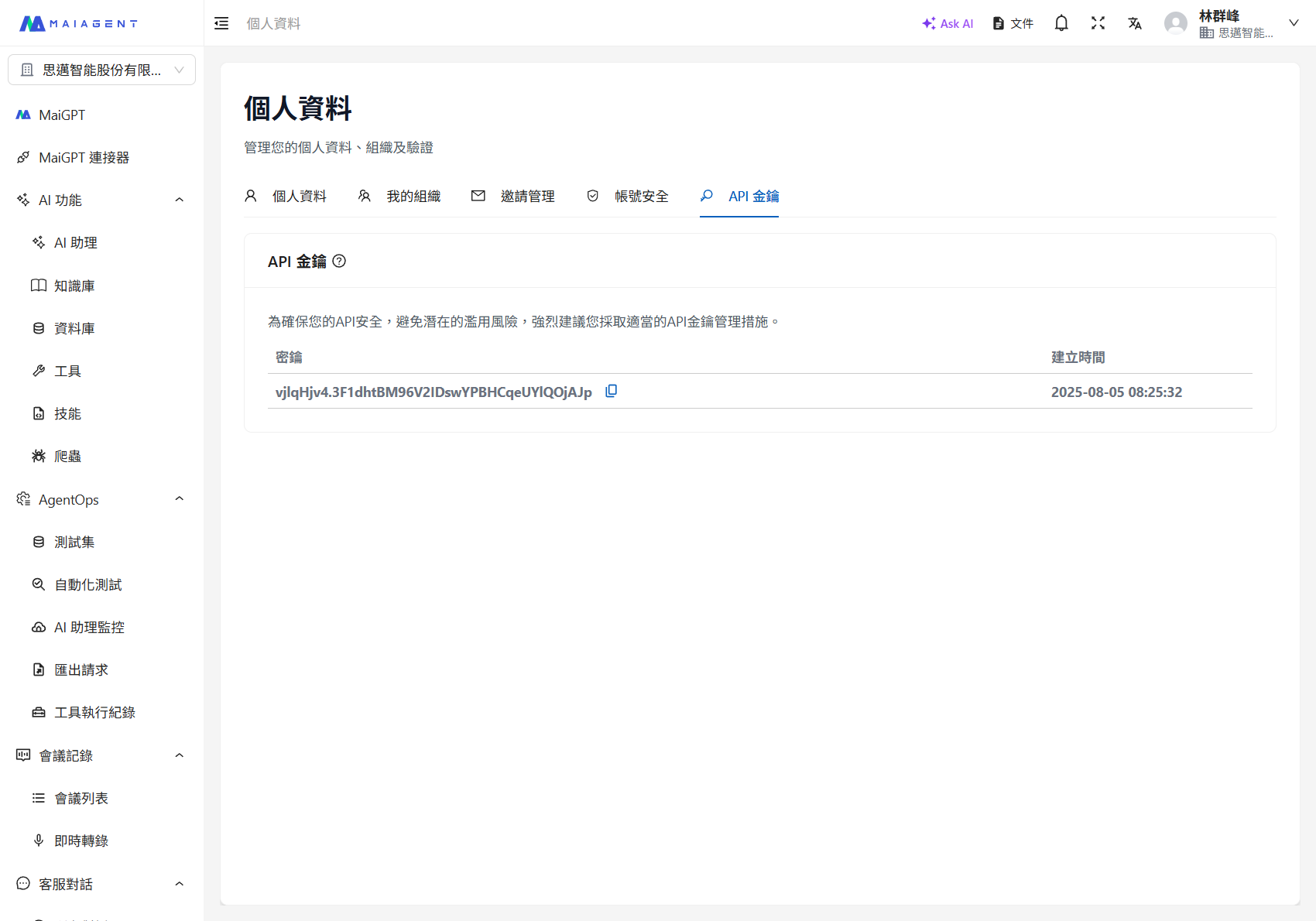

Log in to the [MaiAgent Admin Console](https://admin.maiagent.ai), click the avatar in the top-right corner → <mark style="color:blue;">Profile</mark> → switch to the <mark style="color:blue;">API Key</mark> tab → click <mark style="color:blue;">Create New Key</mark>, and copy the generated API Key.

<figure><img src="https://1360999650-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6v6TNkkOQVfRYfcNirHL%2Fuploads%2Fgit-blob-9a41e29e6db6e3e6327fd4b6d4f032cf055e46bc%2Foptimizer-api-key.png?alt=media" alt="API Key tab in Profile"><figcaption><p>Profile → API Key Tab</p></figcaption></figure>

{% hint style="danger" %}
The API Key is displayed only once after creation. Copy and store it securely immediately. An API Key is equivalent to your login credentials — do not share it with others or commit it to version control (git).
{% endhint %}

***

## <mark style="color:blue;">3. Connection Setup</mark> <a href="#setup" id="setup"></a>

Choose the setup method that corresponds to the AI tool you are using. In the examples below, replace `<YOUR_API_KEY>` with the API Key you obtained in the prerequisites.

{% tabs %}
{% tab title="Claude Code" %}
Run the following in your terminal:

```bash
claude mcp add --transport http maiagent https://mcp.maiagent.ai/mcp \
  -s user \
  --header "Authorization: Api-Key <YOUR_API_KEY>"
```

`-s user` makes it available across all projects. To use it only in the current project, change to `-s project` (the configuration will be written to `.mcp.json` in the project root).

You can also manually edit `.mcp.json` directly:

```json
{
  "mcpServers": {
    "maiagent": {
      "type": "http",
      "url": "https://mcp.maiagent.ai/mcp",
      "headers": {
        "Authorization": "Api-Key <YOUR_API_KEY>"
      }
    }
  }
}
```

{% hint style="warning" %}
When using `-s project`, Claude Code will ask whether to trust the project's MCP server on first launch — select agree. If the directory containing `.mcp.json` is a git project, add `.mcp.json` to `.gitignore` to prevent the API Key from being committed.
{% endhint %}
{% endtab %}

{% tab title="Claude Desktop" %}
Edit the Claude Desktop configuration file (macOS: `~/Library/Application Support/Claude/claude_desktop_config.json`; Windows: `%APPDATA%\Claude\claude_desktop_config.json`) and add:

```json
{
  "mcpServers": {
    "maiagent": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "https://mcp.maiagent.ai/mcp",
        "--header",
        "Authorization:${AUTH_HEADER}"
      ],
      "env": {
        "AUTH_HEADER": "Api-Key <YOUR_API_KEY>"
      }
    }
  }
}
```

Save and restart Claude Desktop.

{% hint style="info" %}
This method requires [Node.js](https://nodejs.org/) to be installed locally. The `Authorization` value is passed through `env` to prevent parameters containing spaces from being incorrectly split in the configuration file.
{% endhint %}
{% endtab %}

{% tab title="Cursor" %}
Edit `~/.cursor/mcp.json` (global) or `.cursor/mcp.json` within your project, and add:

```json
{
  "mcpServers": {
    "maiagent": {
      "url": "https://mcp.maiagent.ai/mcp",
      "headers": {
        "Authorization": "Api-Key <YOUR_API_KEY>"
      }
    }
  }
}
```

After saving, go to <mark style="color:blue;">Cursor Settings</mark> → <mark style="color:blue;">MCP</mark> and confirm that `maiagent` shows as connected.
{% endtab %}

{% tab title="Other MCP Tools" %}
Any MCP client that supports **Streamable HTTP** remote connections can be used. Key configuration settings:

| Setting                 | Value                         |
| ----------------------- | ----------------------------- |
| Server URL              | `https://mcp.maiagent.ai/mcp` |
| Transport               | Streamable HTTP               |
| Header: `Authorization` | `Api-Key <YOUR_API_KEY>`      |
| {% endtab %}            |                               |
| {% endtabs %}           |                               |

***

## <mark style="color:blue;">4. Verify Connection</mark> <a href="#verify" id="verify"></a>

After completing the setup, ask the AI in your AI tool to call the `debug_auth` tool (for example, type "Call the maiagent debug\_auth tool to check the connection"). You should see:

```json
{
  "has_auth_header": true,
  "auth_header_preview": "Api-Key xxxxxxxx...",
  "has_organization_id": false,
  "organization_id": null
}
```

If `has_auth_header` is `true`, the connection and authentication are successful (`organization_id` showing `null` is normal — the target Organization is determined by the API Key itself).

***

## <mark style="color:blue;">5. Getting Started</mark> <a href="#usage" id="usage"></a>

Once connected, simply give instructions in natural language. The AI will automatically follow the `search_apis` → `get_api_details` → `call_api` workflow to find and execute the corresponding API. Here are some practical command examples:

* **Query**: "List all my AI Assistants", "Who are the members in this Organization?"
* **Create**: "Create an AI Assistant named 'Product Support' with the role instructions..."
* **Knowledge Base**: "Create a new Knowledge Base and list the current files"
* **Operations**: "Check the recent Conversations for the 'Product Support' Assistant and summarize the common questions"

{% hint style="warning" %}
Operations performed through MCP have the **same effect as manual operations in the Admin Console** (with permissions equivalent to your account). Before performing deletions, modifications, or other changes, ask the AI to explain what it is about to execute.
{% endhint %}

***

## <mark style="color:blue;">6. Troubleshooting</mark> <a href="#troubleshooting" id="troubleshooting"></a>

| Symptom                                                                             | Possible Cause and Solution                                                                                                                                                       |
| ----------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Connection failed, **401** Response                                                 | The API Key is incorrect, has been deleted, or the `Authorization` header is missing. Verify the format is `Api-Key <YOUR_API_KEY>` (with a space between `Api-Key` and the Key). |
| Operating on the wrong Organization (expected Assistants/Knowledge Bases not found) | The API Key is bound to the Organization you were in when the Key was created. Switch to the correct Organization, create a new Key, and update the configuration file.           |
| Tool list is empty                                                                  | The connection was not established successfully. Restart your AI tool. In Claude Code, use the `/mcp` command to check the connection status.                                     |
| Claude Code shows `Pending approval`                                                | Project-level (`-s project`) MCP requires trust approval before connecting. Launch interactive Claude Code and follow the prompt to approve.                                      |
| Permission error when executing an API                                              | `call_api` executes under your identity and can only operate on resources your account has permission to access. Verify your role permissions in that Organization.               |

{% hint style="info" %}
If you are using an on-premise deployment environment, the MCP service Endpoint will differ from the cloud version. Contact your MaiAgent service representative to confirm.
{% endhint %}


---
